Ethereum Blockchain local environment setup using Ganache and truffle

· 4 min read
Suraj Jha

Setting up your dev environment for Ethereum development takes just a few minutes. In this article you will learn about Deploying and Operating Simple Smart Contract on local blockchain network using Ganache and truffle.

Prerequisites​

  1. Download and install the latest node and npm from https://nodejs.org/en/download/
  2. Download and install Visual Studio Code from https://code.visualstudio.com/
  3. Download and install Ganache from https://trufflesuite.com/ganache/
  4. Install Truffle
    npm install truffle -g

Initialize Project​

truffle init my-bank

Output:

Starting init...
================

> Copying project files to my-bank

Init successful, sweet!

Try our scaffold commands to get started:
  $ truffle create contract YourContractName # scaffold a contract
  $ truffle create test YourTestName         # scaffold a test

http://trufflesuite.com/docs/

Uncomment the following lines in truffle-config.js and update the host, port and network_id as given below.

truffle-config.js
...
// tab if you use this network and you must also set the `host`, `port` and `network_id`
// options below to some value.
//
development: {
  host: "127.0.0.1",     // Localhost (default: none)
  port: 8545,            // Standard Ethereum port (default: none)
  network_id: "*",       // Any network (default: none)
},
//
// An additional network, but with some advanced options…
...

Writing Smart Contract​

Create two new files Bank.sol and 1_bank.js in the contracts and migrations directory respectively as shown below.

├─build
│ └─contracts
├─contracts
│ └─ Bank.sol (+)
├─migrations
│ └─ 1_bank.js (+)
└─test
contracts/Bank.sol
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.17;

contract Bank {

    uint256 balance;

    constructor() {
        balance = 0;
    }

    /**
     * @dev Add value in variable
     * @param amount value to deposit
     */
    function deposit(uint256 amount) public {
        if(amount > 0)
            balance += amount;
    }

    function withdraw(uint256 amount) public {
        if(amount > 0)
            balance -= amount;
    }

    /**
     * @dev Return balance
     * @return value of 'number'
     */
    function check_balance() public view returns (uint256){
        return balance;
    }
}
migrations/1_bank.js
const Bank = artifacts.require("Bank");

module.exports = (deployer) => {
    deployer.deploy(Bank);
}

Ganache Setup​

  1. Launch Ganache and Create a new ETHEREUM WORKSPACE.
  2. Rename your Workspace to My Bank and click on Add Project

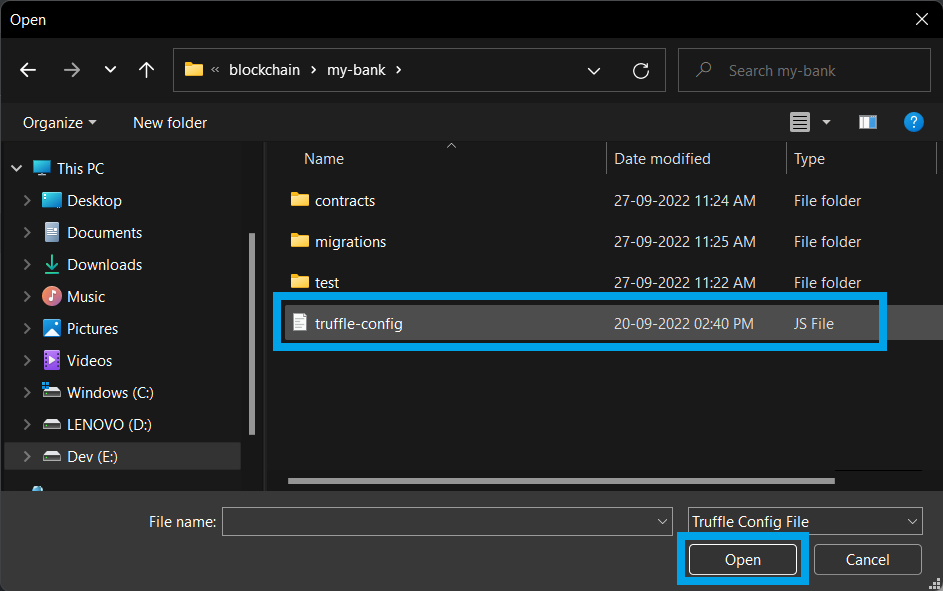

  3. Navigate to your project folder and select truffle-config.js and click Open
  4. Click on Server, update the port to 8545 then click on Save Workspace.

Compiling and Deploying​

Open Terminal and cd to your project directory

npx truffle migrate

Output:

Compiling your contracts...
===========================
> Compiling .\contracts\Bank.sol
> Artifacts written to E:\Personal Projects\blockchain\my-bank\build\contracts
> Compiled successfully using:
   - solc: 0.8.17+commit.8df45f5f.Emscripten.clang


Starting migrations...
======================
> Network name:    'development'
> Network id:      5777
> Block gas limit: 6721975 (0x6691b7)


1_bank.js
=========

   Deploying 'Bank'
   ----------------
   > transaction hash:    0xaa6f43b40c85d646c475e940fe1869fb37876620c726c394a25b6962e28eca9b
   > Blocks: 0            Seconds: 0
   > contract address:    0x5724576138328Ebe1A163b4c756038Fe6C0698E4
   > block number:        1
   > block timestamp:     1664260108
   > account:             0x7b17D239FA8d011FF19fC20efE4aD2E5541839b7
   > balance:             99.9963793
   > gas used:            181035 (0x2c32b)
   > gas price:           20 gwei
   > value sent:          0 ETH
   > total cost:          0.0036207 ETH

   > Saving artifacts
   -------------------------------------
   > Total cost:           0.0036207 ETH

Summary
=======
> Total deployments:   1
> Final cost:          0.0036207 ETH

Wow! You have just deployed your first smart contract! To verify go to Ganache, navigate to Contracts there you will find your first contract Bank

Accessing Deployed Smart Contract​

Enter truffle console​

npx truffle console

Output:

truffle(development)>

Check the current balance​

To call the check_balance() function in the smart contract, write the following code in the truffle console.

truffle(development)>
Bank.deployed().then(function(instance){ return instance.check_balance() })

Output:

BN { negative: 0, words: [ 0, <1 empty item> ], length: 1, red: null }

Deposit the amount​

To call the deposit() function in the smart contract, write the following code in the truffle console.

truffle(development)>
Bank.deployed().then(function(instance){ return instance.deposit(100) })

Output:

{
  tx: '0xfb2f8b4caa8cdb656237dcb7d5793e75d73988d6942e6b8df243408f0fae4e56',
  receipt: {
    transactionHash: '0xfb2f8b4caa8cdb656237dcb7d5793e75d73988d6942e6b8df243408f0fae4e56',
    transactionIndex: 0,
    blockHash: '0xc02d65d946cdde8e3a13f0660af0c109becffefc030dff27f2bf379387f6c9c1',
    blockNumber: 3,
    from: '0x7b17d239fa8d011ff19fc20efe4ad2e5541839b7',
    to: '0x5724576138328ebe1a163b4c756038fe6c0698e4',
    gasUsed: 27673,
    cumulativeGasUsed: 27673,
    contractAddress: null,
    logs: [],
    status: true,
    logsBloom: '0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000',
    rawLogs: []
  },
  logs: []
}

Withdraw the amount​

To call the withdraw() function in the smart contract, write the following code in the truffle console.

truffle(development)>
Bank.deployed().then(function(instance){ return instance.withdraw(20) })

Output:

{
  tx: '0xfbd8c0374ed5f6b800feabb24d9c0d921544f270deb83822be3537c3b3059782',
  receipt: {
    transactionHash: '0xfbd8c0374ed5f6b800feabb24d9c0d921544f270deb83822be3537c3b3059782',
    transactionIndex: 0,
    blockHash: '0x3e729c7336d7ad36048191cd08006163be53acd58d49f6aafbe57b1bef0b2ffb',
    blockNumber: 4,
    from: '0x7b17d239fa8d011ff19fc20efe4ad2e5541839b7',
    to: '0x5724576138328ebe1a163b4c756038fe6c0698e4',
    gasUsed: 27629,
    cumulativeGasUsed: 27629,
    contractAddress: null,
    logs: [],
    status: true,
    logsBloom: '0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000',
    rawLogs: []
  },
  logs: []
}

Verify all the transactions in Ganache​

  1. Check the number of Blocks Created in the BLOCKS Section of Ganache
  2. Verify all the transactions performed by you in the TRANSACTIONS Section of Ganache.
  3. Check the ETH balance of your temporary account in the ACCOUNTS Section of Ganache.
